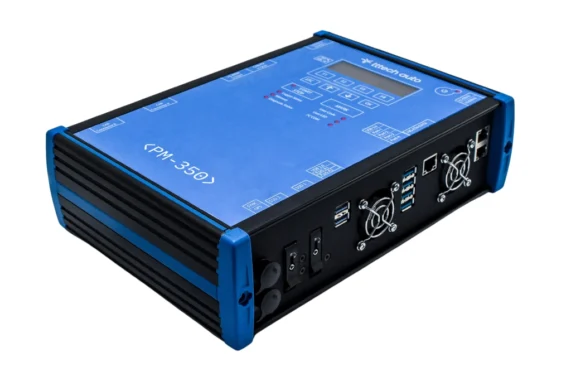

The PM-350 data logger from TTTech Auto complements the company’s data logger family, which was specially developed for the verification and validation of software-defined vehicles (SDV). The device is a further development of the PM-200 and enables the acquisition of high-speed automotive Ethernet while guaranteeing vehicle safety through Freedom from Interference (FFI) at communication level. It also supports the recording of traditional interfaces, including CAN FD, LIN and FlexRay.
The PM-350 is a high-performance data logger for the automotive industry that offers an optimized user interface thanks to its keypad and display and can be expanded as required with a variety of recording modules. Equipped with two NVMe M.2 SSDs, each with up to 4 TB of industrial-grade storage capacity, the PM-350 ensures high recording rates with minimal power consumption.
New features of the data logger include a new hot-swap function that allows users to swap SSDs during active logging sessions. Fully programmable with an open API and support for diagnostic protocols, the PM-350 is predestined for SDV functional testing, fleet management and test drives. Using a software-defined device configuration, the PM-350 enables remote analysis of data, helping users to significantly reduce their testing efforts.
- High-speed data recording via Automotive Ethernet 100/1000Base-T1
- Data acquisition via Ethernet up to 10GBase-T
- Precise, synchronized data acquisition with centralized time stamp resolution under 100ns
- Interruption-free operation thanks to exchangeable storage media
- Robust diagnostics with standard protocols such as DLT over IPv4 and IPv6
- Fast data analysis and sharing through remote data logger & fleet management
- Cascading of multiple devices with standardized time stamps
(jr)
